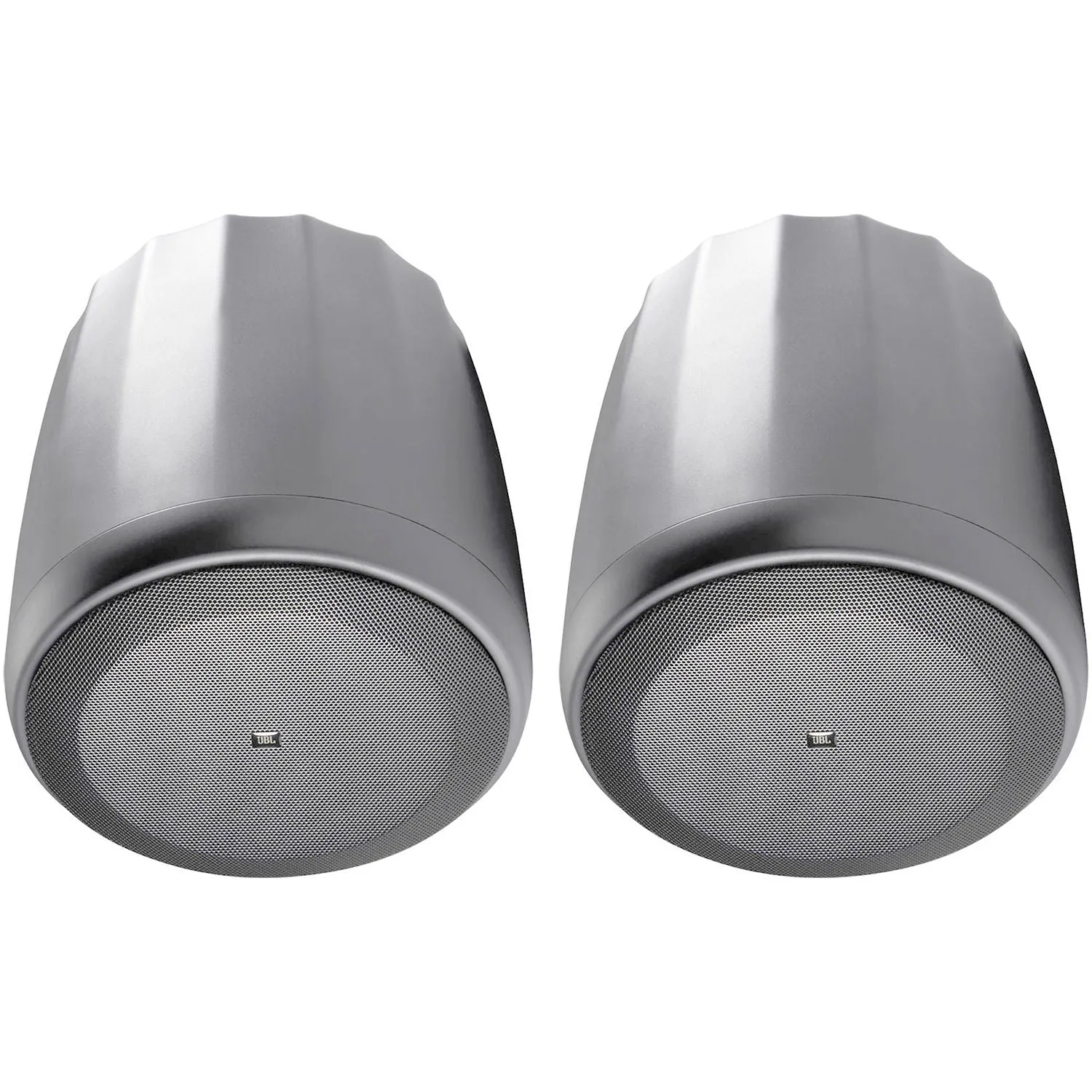

The Control 67HC/T is a high output, full- range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, narrow coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired. The well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics such as convention centers, transit centers, exhibit venues and hotel atrium areas.

JBL’s patent-pending Radiation Boundary Integrator (RBI) technology, adapted from the groundbreaking VERTEC Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining an extra-large 295 mm (11.6 in) diameter waveguide with low- frequency projection apertures, the two coaxially-mounted drivers provide a seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality.

The Control 67HC/T includes a single-point mounting system for easy and secure suspension in open-ceiling applications. Two complete hanging cable systems are included, providing both main and safety suspension cables. Include are extra-long 4.5 m (15 foot) high tensile galvanized steel wire rope having spring clips for the loudspeaker end of the cable and UL listed cable fasteners for infinitely adjustable suspension height.

The system’s 165 mm (61⁄2 in) low-frequency driver features a polypropylene-coated cone and 25 mm (1 in) copper voice coil with vented fiberglass resin coil-former for high power handling and improved long-term reliability. The coaxially-mounted 25 mm (1 in) textile soft- dome high frequency driver features internal damping for smooth extended response, along with an aluminum voice coil former and neodymium magnet assembly with ferro-fluid cooling, for high-fidelity sound quality with enhanced long-term sound level capability.

The Control 67HC/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.

Euro-style clip-in connectors allow for easy wiring. For protected outdoor applications, rubber boots are included to cover the input connectors, and an optional terminal cover is available for harsher locations.

Features

• Compact Design
• 6.5" Woofer with Silk-Dome Tweeter
• Radiation Boundary Integrator Technology
• 75° Conical Coverage
• 75W Power Handling
• 60W Multi-Tap Transformer
• Full Grille

Specifications

• Frequency Range (-10dB) -  75 Hz – 17 kHz
• Frequency Range (±3 dB) -  110 Hz – 16 kHz
• Power Rating
• 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
• 150 Watts Continuous Program Power
• Nominal Sensitivity -  93 dB
• Coverage Angle -  75° conical
• Directivity Factor (Q) -  10.4
• Directivity Index (DI) -  9.8 dB
• Maximum SPL (1m) -  112 dB continuous pink noise, 118 dB peak
• Impedance -  8 ohms
• Transformer Taps -  70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
• Transformer Insertion Loss -  0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• Drivers
• LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
• Enclosure -  High impact polystyrene
• Grille -  Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Outdoor Capability -  Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
• Input Connectors -  Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension -  Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency -  Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Colors -  Available in black or white (-WH). Paintable.
• Optional Accessories -  MTC-PC60HC top panel / terminal cover
• Included Accessories -  Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Dimensions (Diameter x Height) -  13.1 in (333 mm) diameter x 13.54 in (344 mm) height to top of cabinet.
• Height to top of suspension bracket - 14.53 in (369 mm)
• Net Weight (each) -  13 lbs (5.9 kg)
